ata_drive::geometry Struct Reference
Struct/Attribute to store and compute the drive's physical geometry. More...
#include <ata_drive.hpp>

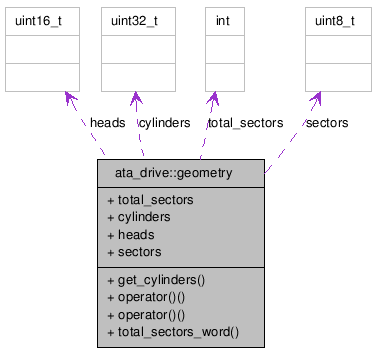

Collaboration diagram for ata_drive::geometry:
Public Types | |
| enum | chs_constants { MAX_CYLINDERS = 65536, MAX_HEADS = 16, MAX_SECTORS = 255 } |
Public Member Functions | |
| uint32_t | get_cylinders (const uint16_t heads, const uint8_t sectors) |
| int | operator() (const l4_sector_t total_sectors) |
| int | operator() (const uint16_t heads, const uint8_t sectors) |
| uint16_t | total_sectors_word (const uint8_t index) |
Public Attributes | |
| l4_sector_t | total_sectors |
| Number of sectors in LBA address mode. | |
| uint32_t | cylinders |
| Number of cylinders in CHS address mode (indexed from 0 to 65535). | |
| uint16_t | heads |
| Number of heads in CHS address mode (indexed from 0 to 15?). | |
| uint8_t | sectors |
| Number of sectors in CHS address mode (indexed from 1 to 255?). | |
Detailed Description
Struct/Attribute to store and compute the drive's physical geometry.The documentation for this struct was generated from the following file:
