i440fx_host_bridge Struct Reference
Intel i440FX host-to-PCI bridge. More...
#include <i440fx_host_bridge.hpp>
Public Member Functions | |
| i440fx_host_bridge (machine_base &machine) | |
| virtual uint32_t | read_ioport (l4_port_t port, access_size access_size) |
| Emulate a device's I/O space read access and return the value that should have been read. | |
| virtual int | write_ioport (l4_port_t port, uint32_t data, access_size access_size) |
| Emulate a device's I/O space write access. | |
| virtual const char * | name (void) const |
| Returns the device's name. | |
| virtual int | reset (void) |
| Resets the bridge and all registered PCI devices as when powering up the machine. | |
| virtual const pci_config_header64 & | get_config_space (void) const |
| Returns a device's PCI configuration space. | |
| virtual l4_umword_t | read_config_space (pci_config_header16::offset_t offset, access_size access_size) |
| Emulates a device's PCI configuration space read access and returns the value that should have been read. | |
| virtual int | write_config_space (pci_config_header16::offset_t offset, l4_umword_t data, access_size access_size) |
| Emulates a device's PCI configuration space write access. | |
Static Public Attributes | |
| static const l4_port_t | CONFIG_ADDRESS = 0x0cf8 |
| static const l4_port_t | CONFIG_DATA = 0x0cfc |
Protected Attributes | |
| i440fx_config_space | config_space |
| i440fx_config_address | config_address |
Detailed Description

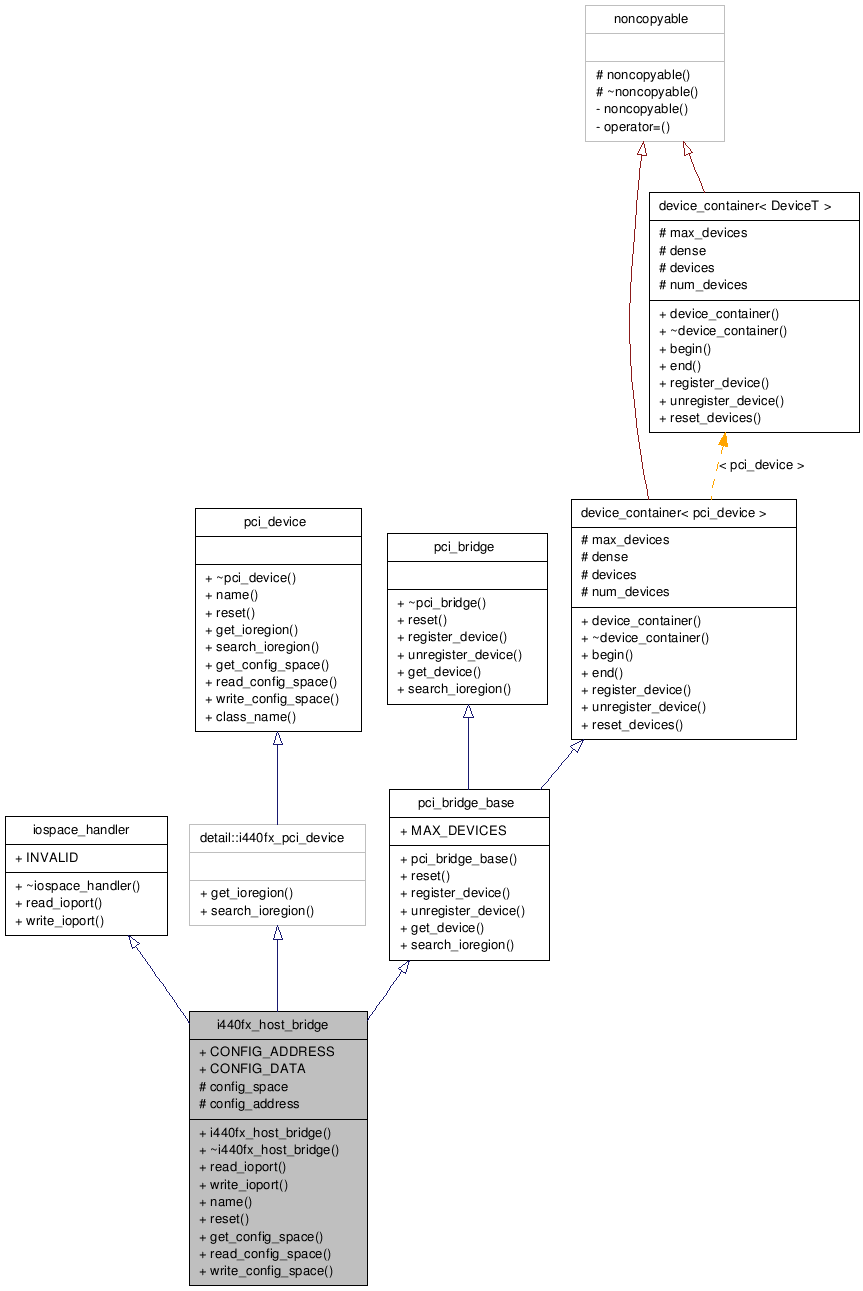

Intel i440FX host-to-PCI bridge.Inherits from pci_bridge_base to provide the PCI bridge interface and implements functions to emulate Intel's i440FX host-to-PCI bridge.
Member Function Documentation
| uint32_t i440fx_host_bridge::read_ioport | ( | l4_port_t | port, | |
| access_size | access_size | |||
| ) | [virtual] |
Emulate a device's I/O space read access and return the value that should have been read.
This function is intended to be overridden.
Implements iospace_handler.
References pci_bridge_base::get_device(), and read_config_space().
| int i440fx_host_bridge::write_ioport | ( | l4_port_t | port, | |
| uint32_t | data, | |||
| access_size | access_size | |||
| ) | [virtual] |
Emulate a device's I/O space write access.
This function is intended to be overridden.
Implements iospace_handler.
References pci_bridge_base::get_device(), and write_config_space().
| l4_umword_t i440fx_host_bridge::read_config_space | ( | pci_config_header16::offset_t | offset, | |
| access_size | access_size | |||
| ) | [virtual] |
Emulates a device's PCI configuration space read access and returns the value that should have been read.
This function is intended to be overridden.
Implements pci_device.
References name().
Referenced by read_ioport().
| int i440fx_host_bridge::write_config_space | ( | pci_config_header16::offset_t | offset, | |
| l4_umword_t | data, | |||
| access_size | access_size | |||
| ) | [virtual] |
Emulates a device's PCI configuration space write access.
This function is intended to be overridden.
Implements pci_device.
References name().
Referenced by write_ioport().
The documentation for this struct was generated from the following files:
- i440fx_host_bridge.hpp
- i440fx_host_bridge.cpp
