piix_ide Struct Reference

Virtual Intel PIIX/ICH compatible IDE controller. More...

#include <piix_ide.hpp>

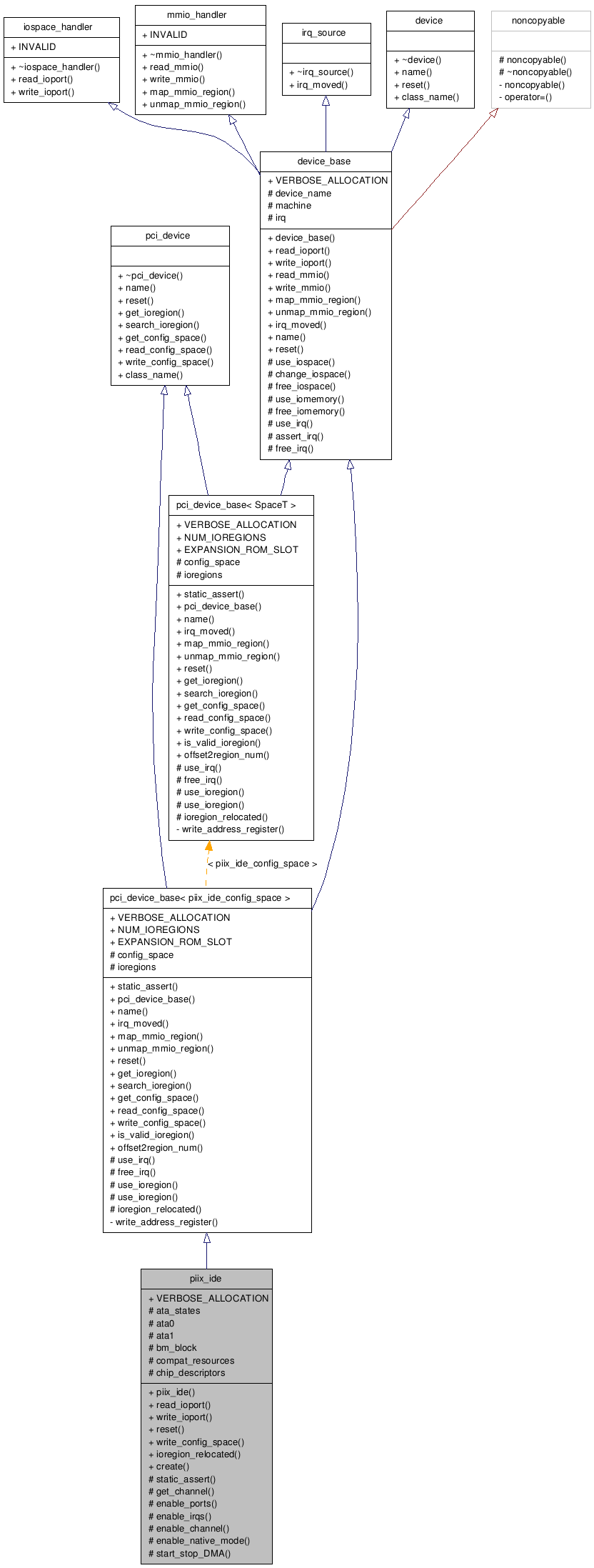

Inheritance diagram for piix_ide:

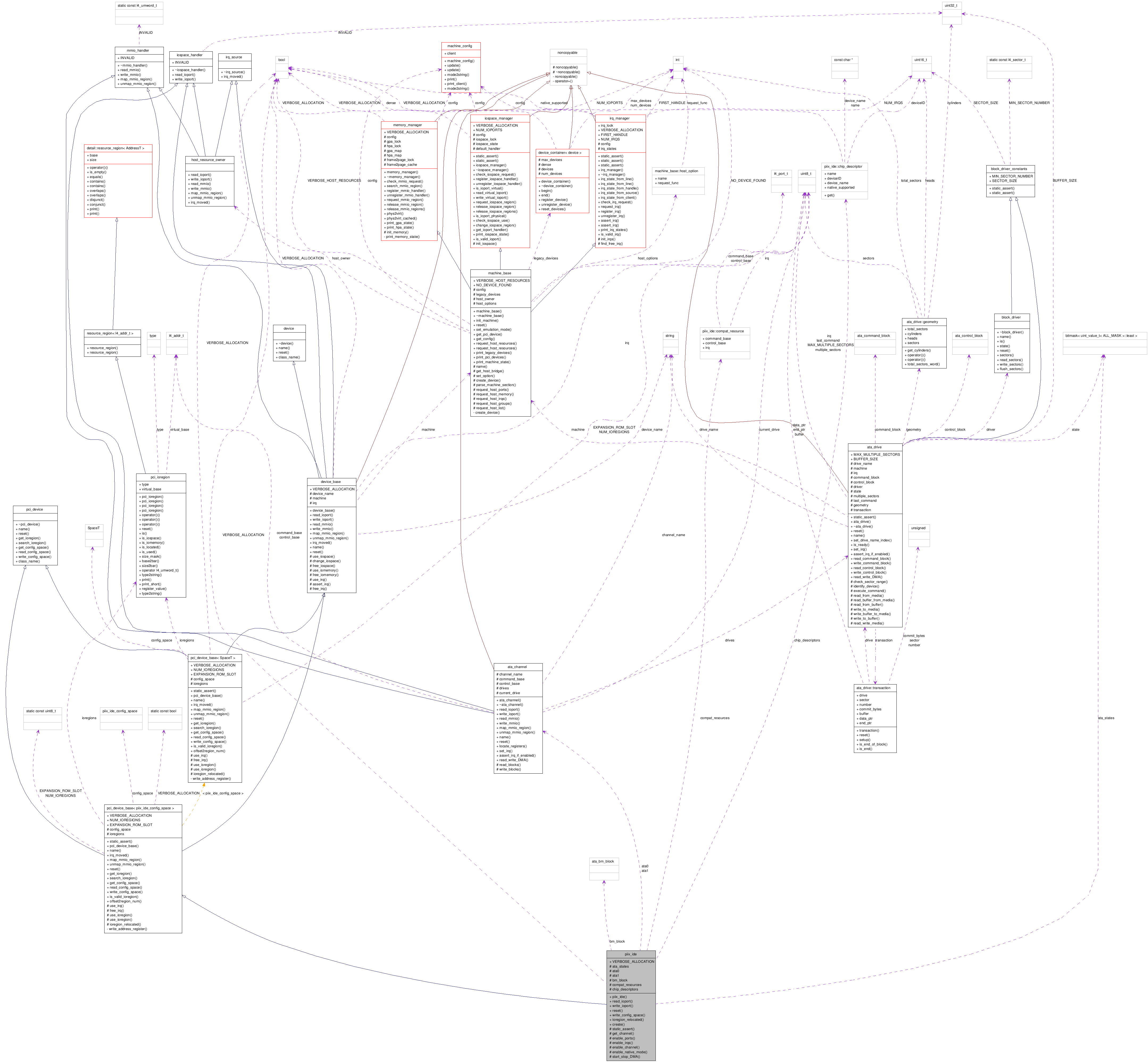

Collaboration diagram for piix_ide:

List of all members.

Public Member Functions

piix_ide (machine_base &machine, ata_drive *drives[4], const chip_descriptor *chip=nullptr, bool native_enabled=true)

virtual uint32_t read_ioport (l4_port_t port, access_size access_size)

Stub implementation, which always returns an invalid value.

virtual int write_ioport (l4_port_t port, uint32_t data, access_size access_size)

Stub implementation, which always returns -L4_ENOTSUPP.

virtual int reset (void)

Resets the device's state back to defaults as when powering up the machine.

virtual int write_config_space (pci_config_header16::offset_t offset, l4_umword_t data, access_size access_size)

Emulates a device's PCI configuration space write access.

virtual int ioregion_relocated (uint8_t region_num, l4_gpa_t old_base)

Called whenever the PCI configuration space write handler updates an address register.

Static Public Member Functions

static pci_device * create (machine_base &machine, config_node &device_node)

Static Public Attributes

static const bool VERBOSE_ALLOCATION = false

Protected Types

enum ata_state_constants {
DECODE_ENABLED = 0x01, COMMAND_REGISTERED = 0x02, CONTROL_REGISTERED = 0x04, IRQ_REGISTERED = 0x08,
NATIVE_MODE_SUPPORTED = 0x10, NATIVE_MODE_ENABLED = 0x20, ALL_MASK
}

typedef pci_device_base
< piix_ide_config_space > super_type

typedef bitmask< uint_value_t
< ALL_MASK >::least > ata_state

Protected Member Functions

static_assert (integer_traits< ata_state::word_type >::const_max >=ALL_MASK,"ata_state's max value is too small")

ata_channel & get_channel (const uint8_t channel_ix)

int enable_ports (uint8_t channel_ix, bool enable=true, bool verbose=VERBOSE_ALLOCATION, l4_port_t command_base=0, l4_port_t control_base=0)

int enable_irqs (uint8_t channel_ix, bool enable=true, bool verbose=VERBOSE_ALLOCATION)

int enable_channel (uint8_t channel_ix, bool enable=true, bool verbose=VERBOSE_ALLOCATION)

int enable_native_mode (uint8_t channel_ix, bool enable=true, bool verbose=VERBOSE_ALLOCATION)

void start_stop_DMA (uint8_t channel_ix)

Protected Attributes

ata_state ata_states [2]

ata_channel ata0

ata_channel ata1

ata_bm_block bm_block

Static Protected Attributes

static struct
piix_ide::compat_resource compat_resources []

static struct
piix_ide::chip_descriptor chip_descriptors []

Classes

struct chip_descriptor

struct compat_resource

Detailed Description

Virtual Intel PIIX/ICH compatible IDE controller.

Member Function Documentation

uint32_t piix_ide::read_ioport	(	l4_port_t	port,
		access_size	access_size
	)			`[virtual]`

Stub implementation, which always returns an invalid value.

Implemented here as a dummy to avoid unnecessary overriding in descendant classes. This function is intended to be overridden.

Reimplemented from device_base.

References detail::resource_region< AddressT >::base, iospace_handler::INVALID, pci_device_base< piix_ide_config_space >::ioregions, and pci_device_base< piix_ide_config_space >::name().

int piix_ide::write_ioport	(	l4_port_t	port,
		uint32_t	data,
		access_size	access_size
	)			`[virtual]`

Stub implementation, which always returns -L4_ENOTSUPP.

Implemented here as a dummy to avoid unnecessary overriding in descendant classes. This function is intended to be overridden.

Reimplemented from device_base.

References detail::resource_region< AddressT >::base, pci_device_base< piix_ide_config_space >::ioregions, and pci_device_base< piix_ide_config_space >::name().

int piix_ide::write_config_space	(	pci_config_header16::offset_t	offset,
		l4_umword_t	data,
		access_size	access_size
	)			`[virtual]`

Emulates a device's PCI configuration space write access.

This function is intended to be overridden.

Reimplemented from pci_device_base< piix_ide_config_space >.

References pci_device_base< piix_ide_config_space >::config_space, pci_device_base< piix_ide_config_space >::name(), and pci_device_base< piix_ide_config_space >::write_config_space().

int piix_ide::ioregion_relocated	(	uint8_t	region_num,
		l4_gpa_t	old_base
	)			`[virtual]`

Called whenever the PCI configuration space write handler updates an address register.

The corresponding pci_ioregion has already been updated. Only resources may be freed/(re-)requested to respond to the new location's accesses. The default implementation simply unregisters and registers itself.

Reimplemented from pci_device_base< piix_ide_config_space >.

References detail::resource_region< AddressT >::base, pci_device_base< piix_ide_config_space >::ioregion_relocated(), pci_device_base< piix_ide_config_space >::ioregions, pci_ioregion::is_used(), pci_device_base< piix_ide_config_space >::name(), and pci_ioregion::print_short().

Member Data Documentation

const piix_ide::chip_descriptor piix_ide::chip_descriptors [static, protected]

Initial value:

{

    {name: "ich3",  deviceID: 0x248b, device_name: "ICH3 IDE",  native_supported: true},


    {name: "piix",  deviceID: 0x1230, device_name: "PIIX IDE",  native_supported: false},
    {name: "piix3", deviceID: 0x7010, device_name: "PIIX3 IDE", native_supported: false},
    {name: "piix4", deviceID: 0x7111, device_name: "PIIX4 IDE", native_supported: false},


    {name: "ich0",  deviceID: 0x2421, device_name: "ICH0 IDE",  native_supported: false},
    {name: "ich1",  deviceID: 0x2411, device_name: "ICH1 IDE",  native_supported: false},
    {name: "ich2",  deviceID: 0x244b, device_name: "ICH2 IDE",  native_supported: false},

    {name: "ich4",  deviceID: 0x24cb, device_name: "ICH4 IDE",  native_supported: true},
    {name: "ich5",  deviceID: 0x24db, device_name: "ICH5 IDE",  native_supported: true},
    {name: "ich6",  deviceID: 0x266f, device_name: "ICH6 IDE",  native_supported: true},
    {name: "ich7",  deviceID: 0x27df, device_name: "ICH7 IDE",  native_supported: true},
    {name: "ich8m", deviceID: 0x2850, device_name: "ICH8M IDE", native_supported: true},

    {name: nullptr, deviceID: 0xffff, device_name: nullptr,     native_supported: false}
}

The documentation for this struct was generated from the following files:

piix_ide.hpp
piix_ide.cpp
